LAB Series dewars provide a convenient and economical way to store and dispense
liquid nitrogen. 50mm narrow neck reduces liquid nitrogen consumption.
KF NW50 is supplied as standard, for convenient connection with other
devices, such as Banagee manual dispens YDB-8 dispenser BD-50B.
Features
Efficient storage of liquid nitrogen
Ultra-low liquid nitrogen consumption
KF NW50 for fast connection with Banagee LN2 pump
Space-saving and light in weight
TWO Year Parts Warranty, FIVE Year Vacuum Warranty
Specification
Model
LAB 3

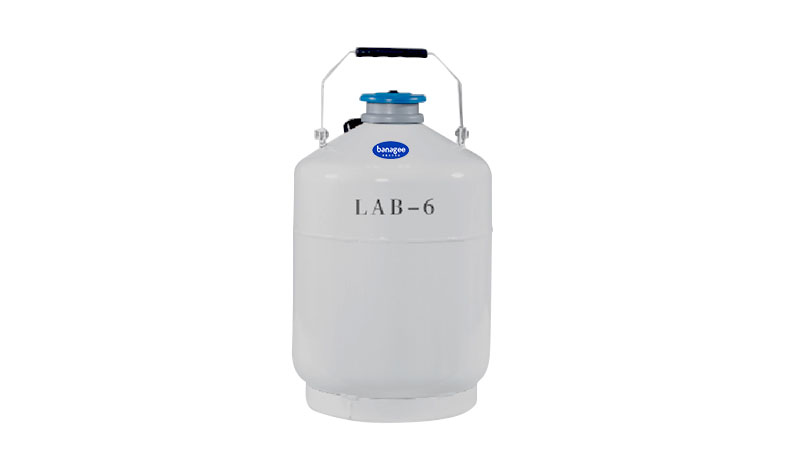

LAB 6

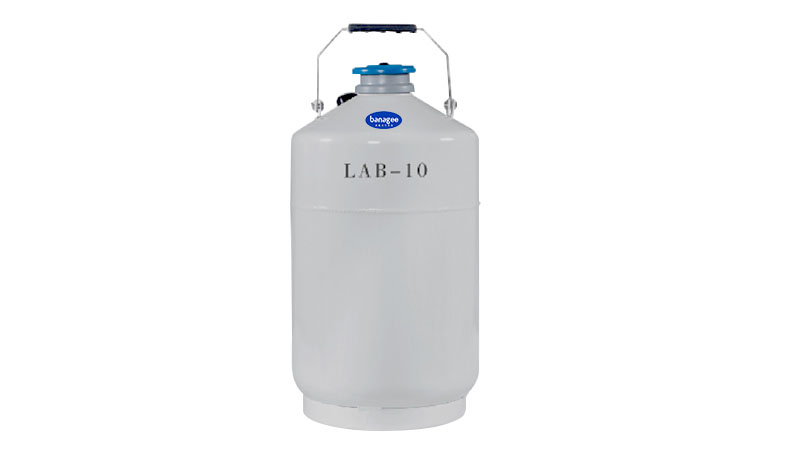

LAB 10
LAB 16
LAB20
LAB 30

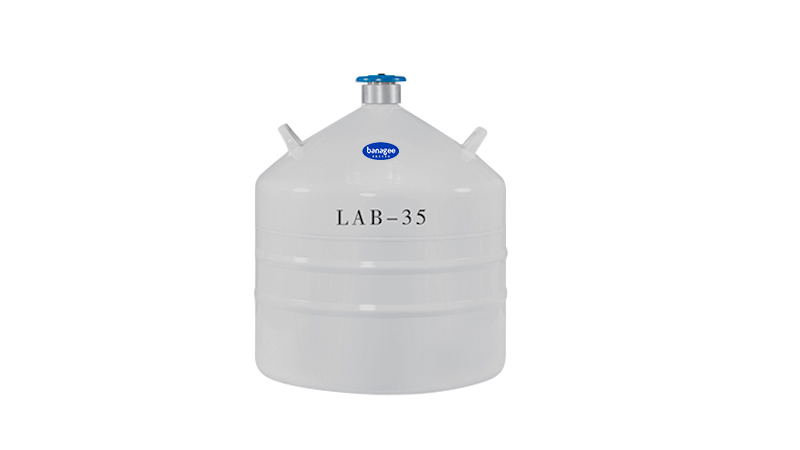

LAB 35
LAB 35P
LAB 50
Performancce
LN2 capacity (L)
3
6
10
16
20
30
35
35
50
Neck diameter (mm)
50
50
50
50
50
50
50
50
50
Static evaporation rate (L/day)
0.12
0.12
0.12
0.12
0.12
0.12
0.12
0.15
0.23
Dimensions
Overall height (mm)
441
468
546
618
668
661
760
580
757
Outer diameter (mm)
224
300
300
396
396
451
451
508
508
Weight empty (KG)
3.5
4.8
6.5
11
12
16
16.4
18
21
Weight full (KG)
6
10
15
22
28
40
45
46
62
Accessories
KF 50 connection
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Roller base (Optional)
—
—
—
—
—
BD-30
BD-30
BD-30
BD-47
LN2 dispenser (Optional)
—
—
YDB-8 (manual)
YDB-8(manual);
BD-50B (auto)
LN2 dipper
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
