Cryogenic Vapor Freezer YDD Series
- Multiple capacity freezers, from 370L to 1,800L, 2.0ml vials storage capacity from 15,600 to 94,500.
- Excellent temperature uniformity and stability, enabling samples to be stored at -190°C vapor phase environment.
- Excellent vacuum performance and structural design ensure minimum liquid nitrogen consumption and lower storage costs.
- Advanced temperature, liquid level monitoring and alarm system, and can realize remote monitoring.
- Automatic supply of liquid nitrogen, safe and labor-saving.
- The liquid nitrogen supply system is controlled by multiple solenoid valves,which can effectively prevent the overflow of liquid nitrogen and sample contamination caused by high LN2 level.
- Manual filling available under special circumstances.
- Compatible with vapor phase and liquid phase storage modes, users can choose according to their needs.
- The optimized mechanism design realizes high-density storage to save space.
Description
Reviews

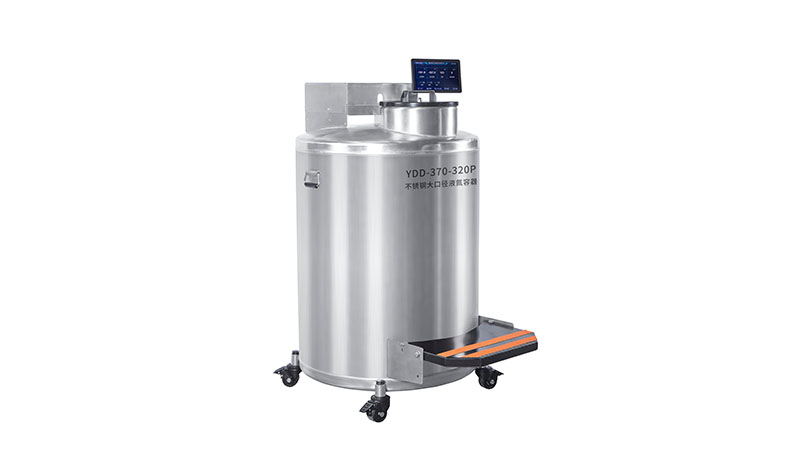

Cryogenic Vapor Freezer YDD Series
YDD series high-efficiency vapor phase liquid nitrogen storage system provides the most ideal storage conditions for biological samples. The whole series realize -190°C vapor phase storage.
Supported by LN2 automatic filling system and temperature & LN2 level monitoring system, YDD freezers provide all-round protection toprecious sample, assisting life science research and cell therapy applications.
Based on the actual needs of users, Banagee has innovatively optimized the performance, structure and control system of the vapor-phase cryogenic freezer to meet the user's highest standard of large-capacity vapor-phase cryogenic storage requirements.
Advanced Control System

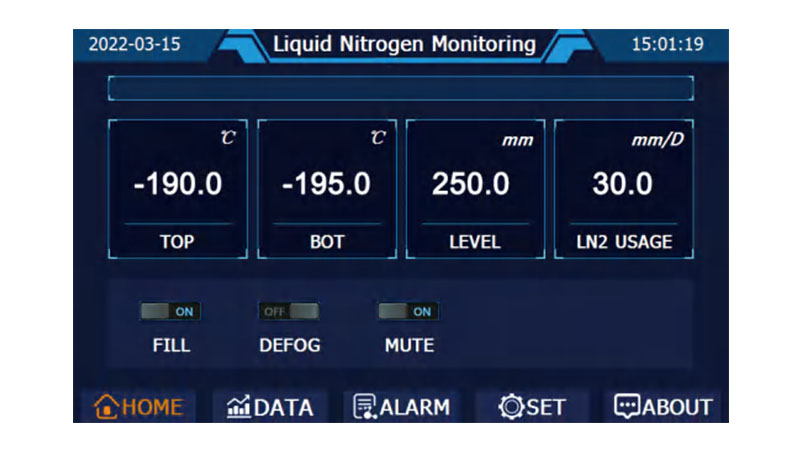

HMI human-machine interactive touch screen, display temperature, liquid level, temperature curve and alarm information.
Important events such as temperature, alarm,liquid nitrogen fill, can be checked, and can also download through USB disk.
Various alarms, and the alarm information can be stored and downloaded through the USB disk.
Operating data, such as temperature and liquid level, can be stored for up to 10 years.
Optimized structure design to achieve the best sample storage density and save space.
Multiple capacity freezers, from 370L to 1,800L, 2.0ml vials storage capacity from 15,600 to 94,500.
Excellent temperature uniformity and stability, enabling samples to be stored at -190°C vapor phase environment.
Excellent vacuum performance and structural design ensure minimum liquid nitrogen consumption and lower storage costs.
Advanced temperature, liquid level monitoring and alarm system, and can realize remote monitoring.
Automatic supply of liquid nitrogen, safe and labor-saving.
The liquid nitrogen supply system is controlled by multiple solenoid valves,which can effectively prevent the overflow of liquid nitrogen and sample contamination caused by high LN2 level.
Manual filling available under special circumstances.
Compatible with vapor phase and liquid phase storage modes, users can choose according to their needs.
The optimized mechanism design realizes high-density storage to save space.
Humanized Design
Defog function, easier to find samples and shorten lid opening time.
After 48 hours of lid open, temperature in the freezer remains below -150°C (according to the factory test standard).
The remote alarm interface can be connected to the central alarm system.

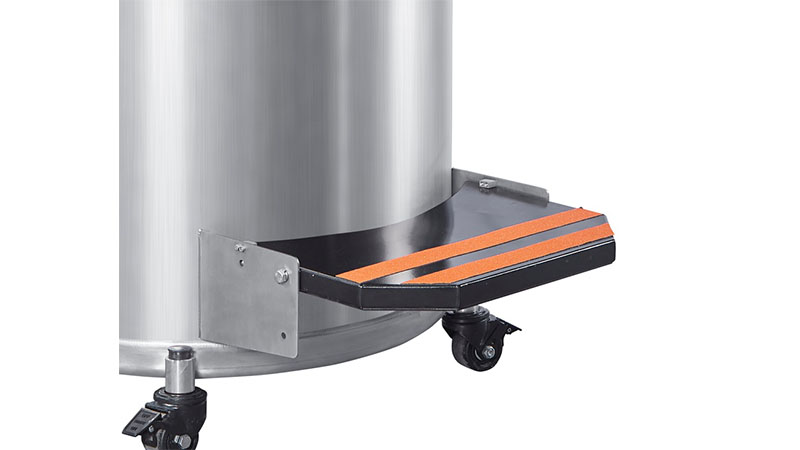

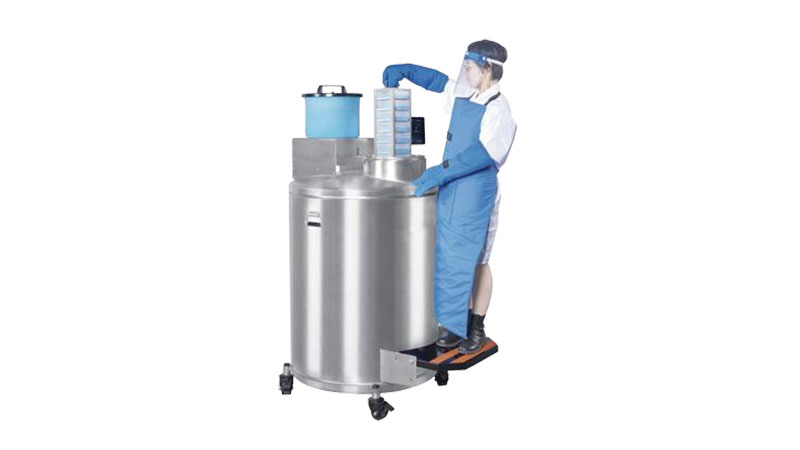

Foldable step for convenient operation & space saving. Optional backup battery in case of power failure.
Optional vacuum jacketed hose for lower liquid nitrogen consumption.
Why YDD Series ?
1.High density storage
Compared with similar products, YDD freezers have a small footprint and can store a large number of samples. It truly realizes high-density storage, which not only saves space, but also reduces the storage
cost per sample. Both horizontal and vertical rack systems available.
2.Excellent temperature uniformity
Vacuum insulated stainless steel tank structure, high vacuum coverage, to ensure excellent thermal insulation performance. When samples are stored at vapor phase, top level sample temperature is lower than -180°C.
3.Stable opening temperature
The innovative lid and vacuum insulated neck design reduce LN2 evaporation. Even when the lid is opened for up to 48 hours, the inner temperature can remain stable.
4.Advanced temperature monitoring system
The monitoring system based on microprocessor and platinum temperature probe can display the maximum and minimum temperature inside the tank in real time with an accuracy of ±1°C. The user can set the alarm point by himself, with the option of alarm mute.
5.Automatic LN2 filling & level monitoring system
The liquid level monitoring system based on high-precision differential pressure sensor displays the liquid level in real time to ensure the safety and reliability of the automatic filling of liquid nitrogen. The color touch screen can display: top temperature, bottom temperature, liquid level height, daily liquid nitrogen consumption and other parameters.
6.Warm gas bypass
The warm gas bypass design can remove the high temperature nitrogen (gas) in the pipeline before the liquid nitrogen is injected, so as to ensure that only ultra-low temperature liquid nitrogen is injected into freezer, which avoids the temperature fluctuation in the freezer & thermo shock to samples during filling process,protecting the safety of samples.
Rack for cryogenic boxes
Frame Rack & Cassette for Blood Bags
Inventory & Layout
Specification
25ml blood bag：Pall MEDSEPTM 25 mL, OriGen CS 25; 50ml blood bag：Fenwal 4R9951, OriGen CS 50;
250ml blood bag：Fenwal 4R9953 & 4R5461, OriGen CS 25, CryoMACS 50 & 250, CryoPAC 025B & 050B; 500ml blood bag：Fenwal 4R9955 & 4R5462, OriGen CS 500, CryoPAC 250B & 500B;
200ml blood bag：Gambro DF-200 or CryoMACS 50 & 250; 700ml blood bag：Gambro DF-700, OriGen CS 1000, CryoMACS 500 & 750 &1000, CryoPAC 750B.
